Ultravation: Improving indoor air quality for over 20 years
Commercial • Institutional • Medical • Manufacturing • Public
We create healthier, safer and more productive professional environments through better air
Ultravation is a member of the following professional HVAC trade, engineering and indoor air quality organizations:
Indoor air quality (IAQ) has always been a factor in working and living environments at some level. Today, indoor air is being improved as never before to remove pathogens, allergens, toxic gases/odors and microscopic particulates.
UV-C light is a well-proven, non-chemical disinfectant that creates no by-products or residuals. Since 1933, it has been used in water and air treatment, food processing and pharmaceutical applications, to name just a few. It can in-activate and/or prevent all types of bio-growth without residuals or by-products. There is no direct environmental impact.
UV disinfection technology is recognized by the CDC and the EPA and is the only disinfection technology endorsed by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE)
Below are measurements showing a practical and cost-effective method of achieving airstream disinfection by applying the UV-C energy of two Ultravation UV-C disinfection systems operating in tandem in a single large air handler.
Provide a healthy workplace environment
The reduction of air contamination, including chemical pollutants, airborne bacteria, viruses and allergens as air circulates through the HVAC system provides a safer, more comfortable working environment that can lead to increased productivity, fewer sick days and even support a more positive company culture.
Reduce HVAC energy use with UV Lights
UV prevents bio-growth on HVAC coils which inhibits coil efficiency. Consistently clean and efficient coils maximize HVAC efficiency reducing energy consumption—far beyond the energy used by the disinfection system.
Reduce HVAC maintenance, wear and tear
Reduced operating hours also result in less maintenance and the extension of the overall life of the HVAC system.
Ultravation system design and installation assistance
Our engineers have done all the math. With answers to a few questions, we can design (size) the needed system to meet performance goals, including target pathogens. View the various IAQ improvement options we offer and if you'd like a quote for a UV installation, use our UV Disinfection Sizing Form to get started or call 866 468 8247 to speak with an IAQ professional.
More than 20 years of experience with UV HVAC disinfection and indoor air quality (IAQ) technologies
Ultravation, Inc. was founded in 2000 with a dedication to improving indoor environments. Learn more about Ultravation
Indoor air disinfection and purification systems—commercial applications
UV-C disinfection systems for large commercial HVAC air handlers
UVMatrix SI installed in a large air handler with the six coil stacks.
Infinite adjustability! No other UV system provides better UV coverage and an easier, more precise fit than UVMatrix SI-Series PerfectFit UV™ Watch the video for a quick demo of how the complete system conforms to the need—whether new or retrofit.
UVMatrix ReFresh PCO panel
When activated by ultraviolet light the PCO panel reduces VOC contamination via the production of Hydroxyl radicals and super-oxide ions. This “oxidizing process” is made possible via the Humidity (water) available and the oxygen found flowing within the HVAC duct system.
UVGI systems for HVAC coil irradiation and airstream disinfection
The Ultravation® UVMatrix SI-Series disinfects HVAC coil and surrounding surfaces including drain pans in large air handlers.
With available real-time UV-C monitoring, remote lamp status capability, and connections to interface with building automation, the SI-Series has been the choice for the most stringent applications from medical facilities to federal buildings to universities and airports.
- State-of-the-art design for the highest performance, reliability and longevity
- Built-in expansion system assures excellent fit and UV exposure
- Sealed, encased UV lamps (water-tight)
- Watertight electrical enclosures, stainless steel available
Teflon-coated UV lamps- Quartz glass-encased UV lamps
- Patented expanding design assures fit in new and retrofit applications
- Complete system — no extra framework or hardware to purchase
- Persistent prevention of HVAC bio-growth optimizes HVAC efficiency
- 360° UVGI dispersion optimizes disinfection of the airstream and adjacent surfaces
- Direct rapid return on investment through energy savings and
- Indirect ROI through improved indoor working environment
- Reduces HVAC wear and tear, extending HVAC lifespan
- Ends or reduces periodic chemical cleanings
- Complete assessment and sizing service provided
UVMatrix™ SI conforms to UL 2998 (3rd Edition, July 10, 2020) clause 6.2, emittance of ozone not exceeding a concentration of 0.005 ppm.
CARB Certified
The patented sliding adjustability of the SI-series is intended to facilitate installation in both new and retrofit scenarios. The watertight sealed lamps and electronics along with the stainless steel option assures reliability, longevity and consistency in performance.
UVMatrix-SI increases HVAC efficiency and saves energy
Measured benefits from adding UV to a clogged HVAC system—from an independent study
This study takes into account all factors affected by the additions of UVGI. Such as the reduction of HVAC wear and tear, to the energy impact of operating the UV system. Yet it shows just over $13,000 dollars in operational savings for this particular system at the existing electric rate.
Electric rate @ $0.1168kWh • An independent study conducted by and copyright © B. Alan Whitson Company
Measured benefits from adding UV to a clogged HVAC system—from an independent study
This study takes into account all factors affected by the additions of UVGI. Such as the reduction of HVAC wear and tear, to the energy impact of operating the UV system. Yet it shows just over $13,000 dollars in operational savings for this particular system at the existing electric rate.
System Performance Factors
- Static Pressure:
1000% improvement in pressure drop with clear coil. - Chilled Water Temp:
11% improvement in heat transfer. - Coil Chilled Water Flow:
25% reduction in flow rate reduces pump energy, increases pump life.
Energy Used
- AHU Fan Energy:
42% reduction in fan energy consumed and reduces wear and tear. - Chiller Energy:
6% reduction in chiller energy consumed also reduces wear and tear. - Pump Energy:
10% reduction in pump energy consumed with reduction in wear and tear. - UVC System Energy:
Energy consumption of UV system less than 1% of total use.
Electric rate @ $0.1168kWh • An independent study conducted by and copyright © B. Alan Whitson Company
SI-Series features and options
UVMatrix™ CP system panel
UVMatrix™ CP system monitoring with elapsed time counter to inform when lamps need to be changed. Available real-time UVC intensity display with sensors and remote alarm triggers.
Water-tight seals
UVMatrix™ SI quartz glass enclosed UV-C lamps with water tight seals for the ultimate in long term performance and reliability. Shown with optional stainless steel electrical enclosure.

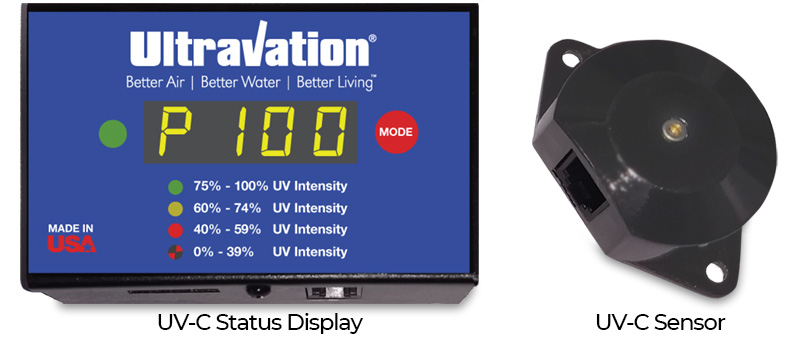

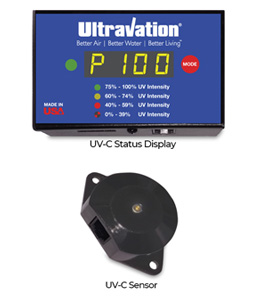

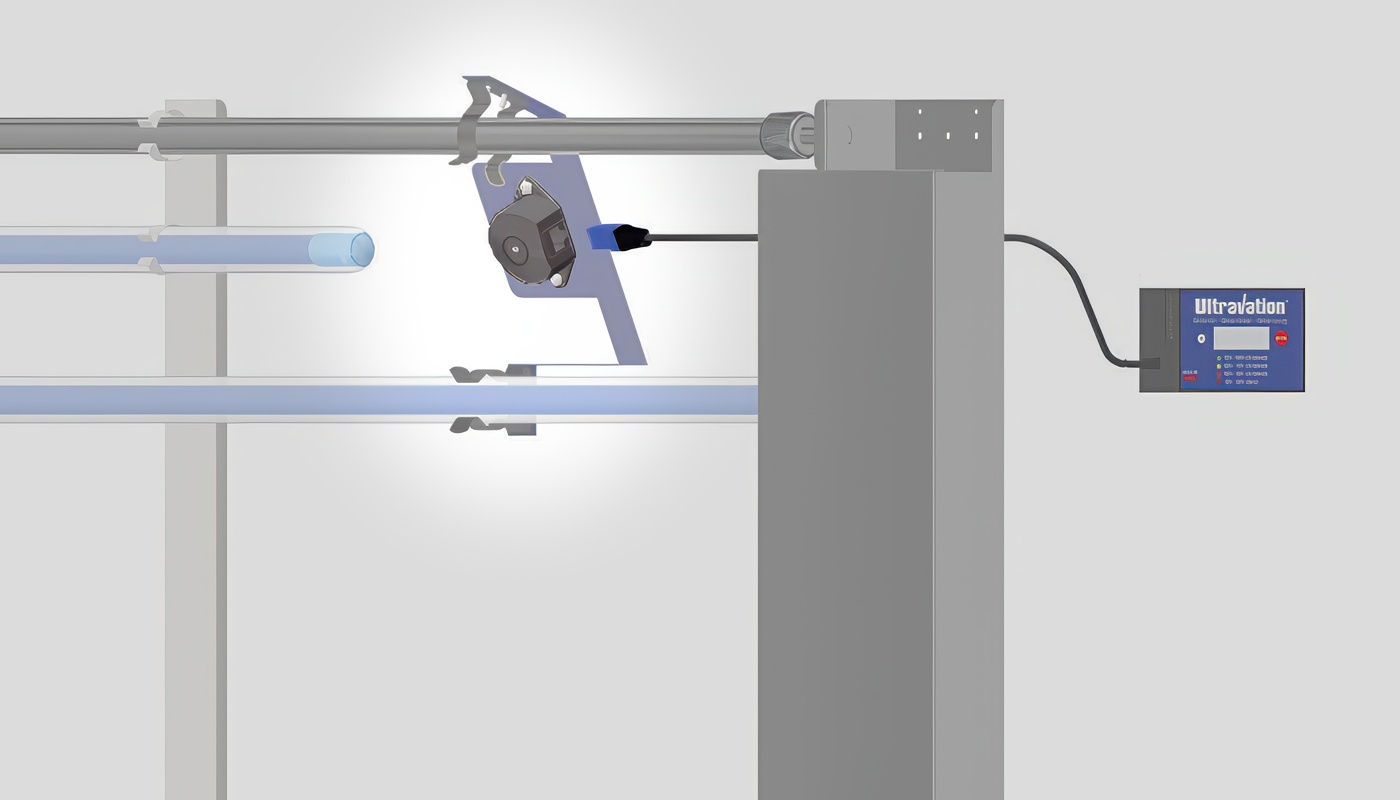

Real-time UV-C monitor
Actual UV output measurement system provides live lamp status for real-time UV-C output monitoring. Works with UVMatrix CP Monitor.
Ultravation’s innovative T3™ UV-C Lamp System
To maximum performance at the lowest cost, Ultravation developed the T3™ UV lamp system to provide up to 40% higher intensity UV-C output without increased energy consumption.
T3™ provides 40% more germicidal UV-C light
T3's UV-C transparent quart sleeves insulate the lamps from passing cold air and condensate, optimizing lamp temperature and increasing output.
T3's 360° dispersion best for airstream disinfection
Low turbulence T3™ UV lamp design requires no reflective panels on the lamps, extending dispersion to 360°, creating an effective germicidal field for airstream disinfection
Sizing, installation and technical assistance
Ultravation service includes available engineers and technicians to assist contractors and property owners with all aspects of designing, configuring, installing and commissioning a system that will meet your goals.
- System recommendations based on target pathogens or contamination.
- System sizing to to achieve goals based on HVAC system and size of treated space.
- Installation assistance and commissioning available
- Performance and results documentation
Modular UV-C disinfection for mid- to large-size air handlers
UVMatrix™ LCI: Modular UV-C disinfection for mid- to large-size air handlers
UVMatrix LCI installed showing T3™ mounting clip and three VXP-120 vertical expansion posts for mounting (adjusts up to 120”, with no cutting required).
Installation flexibility! Watch the video for a quick demo of how the UVMatrix LCI system's modular design can be easily configured for coil and surface disinfection or in-duct airstream disinfection.
NEMA-rated Light Commercial / Industrial UVGI Disinfection
Ultravation UVMatrix LCI-Series is a breakthrough in flexibility in UV systems for large air handlers. Available in 2-, 4- and 6-lamp modules that can also be combined for complete germicidal coverage of any size cooling coil. UVMatrix LCI is a highly efficient solution to achieve target performance for surface disinfection (coils, drain pan, blower) and is easily configured for in-duct airstream disinfection.
- Modular Design/Build: Choose from 33-, 48- and 62-inch Ultravation® T3™ UV-C lamps.
- Remote Power Supply: Installs inside or outside air handler to ductwork
- Ultimate Flexibility: This allows for different UV lamp lengths to be powered by the same remote power enclosure.
- Completely Adjustable: Different UV lamp lengths are mixed and powered by the same power enclosure.
- Modular Frame: Aluminum supports are pre-drilled for accurate lamp positioning / adjustable length to ensure fit with any coil with no cutting needed
- Real-time Performance Monitoring: UV-C intensity and operational status monitoring are available which can be integrated with building automation.
- NEMA-4X-rated electrical enclosure (UL Certified).
- Customizable 20 ft. UV-C lamp leads: Easily create clean cable runs while maintaining fast and efficient installation.
- Easily accessed connections to electronic smart-power supplies.
- Magnet-mount T3MC mounting hardware included.
LCI-Series features and options
Design flexibilty for best UV coverage
The design flexibility of the UVMatrix LCI system allows for multiple lamp lengths to be used by the same enclosure for proper UVC coverage. View basic configurations.
Smart-power access connections
UVMatrix LCI system is available in 2-, 4- or 6-lamp configurations. Customize cable runs for a fast and efficient system install. Accessible connects with electronic Smart-power supplied.
Real-time 254nm UV monitoring
Available LED monitoring option displays lamps status and provided contacts for connections to building automation systems.
Every UVMatrix LCI UV system is composed of these fundamental components
Expanding vertical posts
VXP-120
Adjustable without cutting up to 120”
(At least two posts required for any installation.)
Smart-power monitor
LCI-2 • LCI-4 • LCI-6
2-, 4-, and 6-Lamp LCI Power Enclosure
NEMA 4X rated
20 ft. UV lamp leads included
T3™ 254nm UV-C lamps
AS-IH-0610
62” T3 Lamp • 0.625 amps @ 120V
AS-IH-0612
48” T3 Lamp • 0.49 amps @ 120V
AS-IH-0611
33” T3 Lamp • 0.35 amps @ 120V
Mounting hardware
T3MC
Lamp mounting hardware and -M / 94-068 magnets (two per lamp) supplied with LCI system.
94-045 • 94-046 • 94-047
33”, 48”, and 62” light shield
Basic configurations, customizable for any size HVAC coil
Coil Disinfection
Two-lamp assembly
VXP-120 Vertical supports (2)
LCI-2 Power enclosure
AS-IH-0610 UV-C lamps (2)
T3MC LCI mounting clamps (4)
Four-lamp assembly
VXP-120 Vertical supports (3)
LCI-4 Power enclosure
AS-IH-0610 UV-C lamps (4)
T3MC LCI mounting clamps (8)
Six-lamp assembly
VXP-120 Vertical supports (3)
LCI-6 Power enclosure
AS-IH-0610 UV-C lamps (6)
T3MC LCI mounting clamps (12)
Airstream Disinfection
Side-access configuration
LCI-6 Power enclosure
AS-IH-0610 UV-C lamps (6)
T3MC LCI mounting clamps (12)
-M mounting magnets (12)
Center-duct configuration
VXP-120 Vertical supports (2)
LCI-4 Power enclosure
AS-IH-0610 UV-C lamps (4)
T3MC LCI mounting clamps (8)
UV-C airstream disinfection systems
Ultravation AS-Series exposes bacteria and viruses to high-intensity UV light maximizing pathogen exposure.

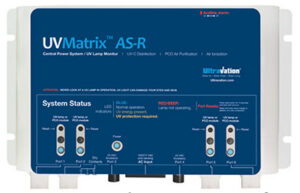

UVMatrix AS-R
UV System with two to four 12" to 22" High intensity, 254 nm non-ozone UVGI lamps on 6ft remote leads and high-efficiency power supply.
UVMatrix AS-PCO
Supplemental air stream purification with photo-catalytic VOC reduction. Install on supply or return duct to further eliminate stubborn odors and airborne pathogens.

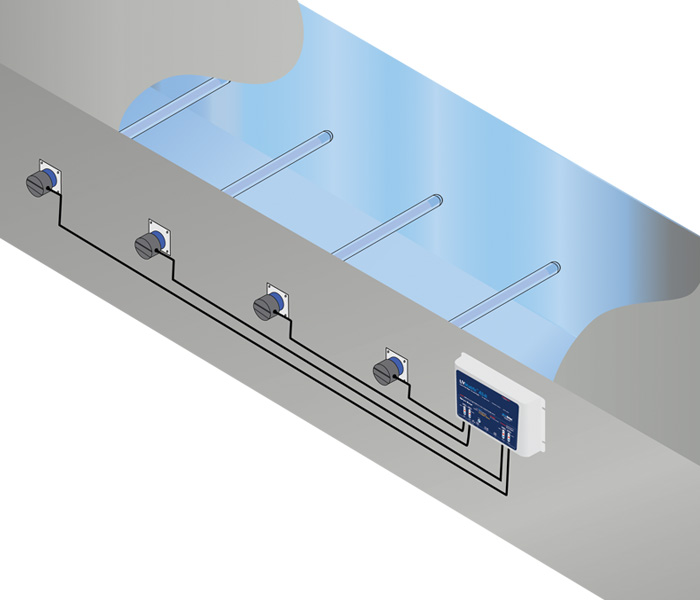

Airstream Disinfection Designed for Commercial HVAC Ductwork
The Ultravation UVMatrix™ AS-Series is capable of exposing airborne microorganisms circulating through an HVAC system to high levels of UV-C energy. A major benefit of HVAC airstream disinfection is the reduction of airborne bacteria and viruses that accumulate in one area, room or office from being spread to others. Another is the ability to apply a very intense germicidal dose with needed exposure or dwell time since the ductwork lends itself to that purpose and people are completely shielded from the germicidal UV light.
- Can be configurated for nearly any airstream disinfection task
- Low power consumption
- 18,000-hour lamp life
- 10-year UV system warranty
- 1-year UV lamp warranty
While the AS Series can be configured for nearly any airstream disinfection task. It is often used in tandem with UVMatrix SI or LCI-series as an efficient, unified system that provides coil and surface irradiation while efficiently combining the airstream disinfection power of each UV system. Combining systems in this way can reduce the system size needed for the AS-Series, while still achieving targeted performance.
UV dosage calculation
UVMatrix™ AS provides extended germicidal UV exposure time specifically for airstream applications
The AS-Series is designed to bring the needed dwell or exposure time that is necessary to achieve the necessary "kill rate" of the target organism. It is important to remember that air is passing through HVAC air ducts at high speeds. The AS-Series is designed to bring the needed UV dose to effectively eliminate microbes, even in the fast moving HVAC airstream.
For efficiency and added benefit an AS-Series system will often be combined with an SI-Series or LCI-Series installation where the two systems work in tandem. An Si-Series system is primarily installed to disinfect the coil and surrounding surfaces. As a side benefit, its 360° dispersion and T3 lamps serve to partially disinfect the passing airstream. When this "pre-disinfection" phased into the overall dosage calculation, the AS-Series component can be reduced in size. The result is a unified system that provides coil and surface irradiation and effective airstream disinfection and minimized cost.
Configurations for nearly any airstream disinfection task
The blue bars represent the airstream disinfection effectiveness of the Si-Series. The green bars represent the achievable and cost effective performance of adding the AS-Series, with the two systems working in tandem.
Intensity and Exposure: Getting the right UV dose
Ultraviolet light disinfection effectiveness is based on UV intensity and duration of exposure. UVMatrix™ AS installs inline along the duct work to obtain necessary contact or dwell time. Pre- and post-testing can be performed to confirm performance. Real-time UV intensity monitoring is available.
AS-Series configurations for a variety of ductwork scenarios
Ultravation engineers can determine the configuration including the number of UV lamps needed to meet target inactivation goals. System installation and commissioning by factory engineers is available. Shown below are lamp array examples based on HVAC configuration and needed UV dose.

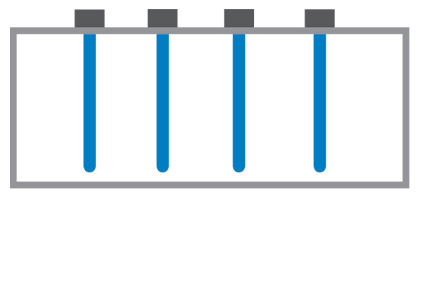

Single system, 4-lamp array

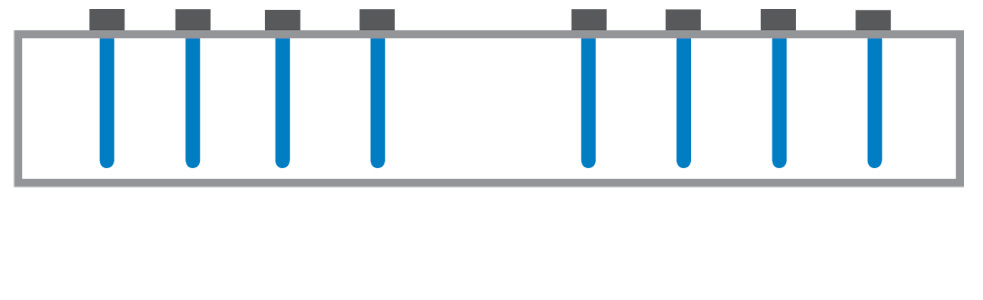

Dual-system, 8-lamp array

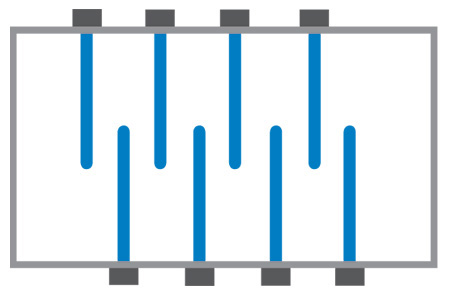

Dual system, 8-lamps interlaced
Single-lamp UV light system for special applications
An easy-to-install single-lamp UV light system for special applications or to augment a larger system.
Augment an existing system or add for hard-to-reach areas
An easy-to-install single-lamp UV-C system for special applications or to augment a larger system. All UVMatrix UV systems for commercial HVAC use UV-C light to kill microorganisms on coils, surfaces and HVAC airstream—including bio-growth, flu viruses and bacteria.
The UVMatrix EZ system – which comes in four lamp lengths – can be used in hard-to-fit specialized HVAC or cooling equipment such as ice machines where controlling bio-growth on cooling coils is vital.
The UVMatrix EZ-Series kit is supplied in component parts to maximize installation flexibility. The six-foot cable is included to allow easy positioning of all components. The optional magnetic mounting clips require no drilling and can streamline the installation and service process. An optional light shield is also available to keep UV away from UV-sensitive areas.
- Low power consumption
- T3™ enhanced lamp system
- 18,000-hour lamp life
- 10-year system warranty (excludes lamp)
- 1-year UV lamp warranty
- Reliable and UVC-optimizing electronic power supply helps extend lamp life
- Available for 120 or 277 VAC operation
- Magnet mounting clips and light shields are optional
EZ-Series features
Ultravation’s innovative T3™ UV-C Lamp System
To maximum performance at the lowest cost, Ultravation developed the T3™ UV lamp system to provide up to 40% higher intensity UV-C output without increased energy consumption.
40% more germicidal UV-C light
T3's UV-C transparent quart sleeves insulate the lamps from passing cold air and condensate, optimizing lamp temperature and increasing output.
T3's 360° dispersion best for airstream disinfection
Low turbulence T3™ UV lamp design requires no reflective panels on the lamps, extending dispersion to 360°, creating an effective germicidal field for airstream disinfection
Rapid pulse ionization for the reduction of odors, VOCs and fine-particulate
UVMatrix™ CIS: Rapid pulse ionization for the reduction of odors, VOCs and fine-particulate
UVMatrix CIS 36 for large air handlers
Ionization for commercial air handlers
Ultravation® UVMatrix™ CIS rapid pulse ion generator systems for large air handler airstreams improve HVAC supply air at the molecular level. Ions improve indoor air quality by reacting with air contamination for:
- Odor and VOC reduction
- Reduction of airborne bacteria and viruses
- Reduction of biogrowth
- Breakdown of smoke particulate
Enhancement of filtration: When installed adjacent (return side) of filtration, UVMatrix™ CIS air ionization creates electrostatic fields that charge micro-particulates from ultra-fine dust to micro-plastics into comparatively large filterable groups. The result is substantially enhanced filter efficiency for very fine particles suspended in the air—historically a difficult region of air contamination reduction.
CIS ionization: How it works
Particulate charging
Micro and nano-particulates are grouped, enhancing filter efficiency for the smallest air contamination.
Odor reduction
Ions react with odor (VOC) molecules, disrupting molecular bonds, reducing them to the normal components of air.
Airstream disinfection
The electrical (+/-) charges of the released ions penetrate the membranes / surfaces of microorganisms, eliminating them.
UVMatrix CIS 36
Designed for large air handlers
The UV Matrix CIS 54-inch wide 12-pin ionizer is designed to fit large air handlers directly or using the optional VXP rack mount system where a single or multiple units can be mounted—usually on the return side of the HVAC coil.
Applications:
- Office buildings
- Government buildings
- Nursing homes
- Animal facilities
- Cruise ships
- Manufacturing
- Medical and veterinary centers
- Schools
- Prisons
- Nail salons
- 12 rapid pulse emitters
- Releases millions of positive and negative ions per second
- 20 ft. power lead
- Rack mount-able in large air handler
- For larger systems rack-mount multiple CIS units
UVMatrix CIS 12
Ionization for 7-12 ton HVAC systems
The UV Matrix CIS-12 is a 4-pin ionizer that can be used singularly or in multiples.
- Adjustable emitters for internal or external mount
- Available magnet mounts for easy internal mounting
Applications:
- Offices
- Nursing homes /elderly care centers
- Animal facilities
- Cruise ships
- Manufacturing
- Medical and veterinary offices
- Schools
- Law enforcement
- Nail salons
- Food service
- 4 rapid pulse emitters
- Releases millions of positive and negative ions per second
- Adjusts to mount inside or outside the air handler
UVMatrix CIS 6
Ionization for 4-6 ton HVAC systems
The UV Matrix CIS-6 is a 2-pin ionizer with that can be used singularly or in multiples.
- Adjustable emitters for internal or external mount
- Available magnet mounts for easy internal mounting
Applications:
- Offices
- Nursing homes /elderly care centers
- Animal facilities
- Cruise ships
- Manufacturing
- Medical and veterinary offices
- Schools
- Law enforcement
- Nail salons
- Food service
UVMatrix™ CIS (Model UVMatrix-CIS-6-2998) conforms to UL 2998 (3rd Edition, July 10, 2020) clause 6.2, emittance of ozone not exceeding a concentration of 0.005 ppm.
- 2 rapid pulse emitters
- Releases millions of positive and negative ions per second
- Adjusts to mount inside or outside the air handler
Reduces airborne VOCs and odors
UVMatrix™ PCO: Reduces airborne VOCs and odors
UVMatrix PCO continuously cleans the HVAC air stream, reducing microbial populations, VOCs and odors
UVMatrix PCO features
Photocatalytic (PCO) | UV-C Disinfection | Odor and VOC Reduction
The UVMatrix PCO (photocatalytic oxidation) series is designed for HVAC systems from 1,200 to 8,000 CFM. These unique air purification systems are available in two different sizes to accommodate various HVAC configurations and to accomplish superior results in any HVAC environment!
The air purification modules are coated with a patented titanium dioxide (TiO2) + zinc (Zn) and silver (Ag) ion PCO formulation. Powered by UV-C light, the UVMatrix PCO purification process breaks down air contamination and is germicidal. It destroys potentially harmful VOCs (volatile organic compounds), odors, and other airborne chemical compounds while sterilizing airborne pathogens in seconds.
UVMatrix PCO system options include adding a second PCO module if VOC / odor levels call for it, or adding a 12" or 17" high-intensity UV-C lamp. Adding UVGI will disinfect the HVAC coil (which can significantly lower HVAC energy consumption), drain pan and other surfaces while working in tandem with the PCO modules to create two air disinfection zones in the HVAC airstream for an intensified reduction of airborne pathogens such as virus and bacteria.
- Two module sizes: 4" and 10"
- 18,000-hour lamp life
- 10-year system warranty (excludes lamp)
- 1-year UV lamp warranty
- Easy maintenance with extended two-year UV-C lamp replacement interval.
- Available T3™ enhanced lamp system for surface disinfection and additional pathogen reduction.
- Reliable and UVC-optimizing electronic power supply helps extend lamp life.
- Compact Power Supply: just 3.5" x 3.5" x 1"
- Available for 24, 120-277 VAC operation
- 6 ft. power cord (24 VAC models)
- Easy to install with pre-installed magnet mount.
Basic configurations
4" PCO Modules
The 4" UVMatrix™ PCO system (UVMATRIX PCO-LV-4) shown here with a 120-277 VAC power supply. Also available with 24 VAC (UVMATRIX PCO-24-4) power supply.
10" PCO Modules
The 10" UVMatrix™ PCO system (UVMATRIX PCO-24-10) shown here with a 24 VAC power supply. Also available with a 120-277 VAC (UVMATRIX PCO-LV-10) power supply.
Two 10" PCO Modules
The UVMatrix™ PCO-24-2-10 features two PCO modules that connect to the 24 VAC power supply with the Quick Connect Y Adapter. Also available as a 120-277 VAC (UVMATRIX PCO-LV-2-10) power supply.
10" PCO Module plus UV-C
The UVMatrix™ PCO-24-10 features one PCO module and shown here with an optional EZ-Light 6P UV-C light (available in 12" and 17" lengths, not compatible with two-lamp PCO systems). Both module and lamp connect to the 24 VAC power supply with the Quick Connect Y Adapter.
Additional configurations are available.
Install in any packaged system
Single room UV-C air disinfection for occupied spaces
Ultravation BioGardUV is a safe and effective ultraviolet air disinfection system for occupied spaces such as libraries, doctors offices, hospital rooms and other public spaces.
Shown: BioGardUV FS-33F Wall mount (left) / BioGardUV FS-33 Wall Mount (right)
Shown: BioGardUV FS-22F Wall mount (left) / BioGardUV FS-22 Wall Mount (right)
Upper Room Germicidal UV-C Air Disinfection
Safe and effective ultraviolet air disinfection for occupied spaces.
Ultravation® BioGardUV™ germicidal ultraviolet air disinfection destroys airborne pathogens by exposing the upper regions of a room to germicidal UV light. Since air naturally circulates in any room due to convection, air that is warmed in the lower part of a room (from respiration and other sources) continually rises where it will be exposed to UV light, which kills airborne bacteria and viruses in seconds. Since the UV light field is restricted to areas above seven feet, the room is safe for occupancy while the air is continuously disinfected.
- Wall mount and bi-directional ceiling mount models
- 22- and 33-inch UV lamp models
- Available with or without a quiet 67cfm fan (30 db)
- Bi-polar ionization option.
- Focused 254nm germicidal UV light
- 9,000 hour UV lamp life
- Energy efficient
- Galvanized steel construction with rugged powder-coat finish
- Safety interlock switch
- Power connection options to accommodate existing wiring and local/national codes
FS-22 and FS-33 models disinfect the air that naturally circulates in the room through convection. Warmed air from activity in the lower parts of the room including respiration rises, carrying pathogens into the disinfection zone above. The disinfected air cools and falls back to the lower regions. Available with 22″ or 33″ UV lamp lengths.
FS-22F and FS-33F models include a quiet (30db) fan that accelerates the airflow and directs it past the UV lamp at 67 cfm, and creates airflow across the upper part of the room where disinfection continues.
Bi-polar ionization can be added (FS-22F and FS-33F) breaks down odors and airborne toxins, augments disinfection and reduces micro particulates. Also available with 22″ or 33″ UV lamp lengths.
Ceiling mount models install flush-to-ceiling or with optional pendents. Ceiling mount models create an extended disinfection zone to the front and to the rear.
Important: The 7-foot minimum installation height requirement (measured from the bottom of the unit) must be observed to assure the safety of the occupants.
BioGardUV / FS-Series features and options
Effectiveness of UVC light against various microbes
Germicidal UV air disinfection is recognized and endorsed by ASHRAE* as effective for the reduction of airborne microbes.
*The American Society of Heating, Refrigerating and Air-Conditioning Engineers
The technology behind the BioGardUV system
The BioGardUV system emits a focused dose of 254 nanometer, germicidal UV-C light into the upper portions of the room. UV-C disinfects by penetrating airborne organisms in the circulating air (by natural convection) disrupting their RNA/DNA. BioGardUV™ fan models also draw the air though the system for a much higher dose of UV, accelerating the process. Fan models also emit positive and negative ions that freshen the air — removing odors and other contamination.
Various models for UV disinfection in occupied spaces
BioGardUV comes in a variety of models and lamp sizes for use in just about any room size. Contact Ultravation for guidance on model selection and placement recommendations.
Germicidal UV for mini-split ductless air conditioning units
Maximum UVC germicidal disinfection for ductless air conditioning units
Stops bio-growth on fan, coil and other surfaces
Stops bio-growth on fan, coil and other surfaces, and related bad odors.
The M-Series™ UV system provides maximum UVC germicidal disinfection for ductless air conditioning units found in hotels, motels, medical offices, homes, apartments, and condos. The high-intensity germicidal UV light kills microorganisms such as bio-growth and bacteria that grow inside the A/C unit as well as helps reduce the airborne contaminants such as germs, viruses, and allergens passing through the HVAC system.
- Fit major brands with easy installation
- Super compact / high intensity
- 48″ lamp leads
- 120-240 VAC (auto sensing)
- 360° UV shield rotation
- Two germicidal 254nm UV lamps
- Twin LED display
- Rugged construction
- 3-year system warranty (lamps 1-year)
The build-up of bio-growth on internal mini-split system parts can create unpleasant, musty, "dirty-sock" odors in the room. Installing an M-Series™ UV system within the mini-split unit, kills and prevents future growth of the bacteria and other bio-growth that causes odors. As bio-growth on coil fins will acts as an insulator, the installation of UV can be expected to reduce mini-split operation and maintenance costs through the optimization of cooling efficiency.
Its compact design fits major mini-split A/C brands and is easily installed by residential or commercial HVAC contractors. Its 360° UV shield rotates, allowing the installer to direct the UV where needed to prevent accidental or unwanted exposure.
Easily installed by any professional HVAC contractor
UV-C disinfection: Rooftop HVAC systems and other outdoor / wet locations
Disinfection for HVAC coils on roof-top style HVAC systems and other outdoor applications.
NEMA 4X rated UV light disinfection
UVMatrix™ 4X: Compact design with NEMA 4X-rated electrical cabinet for operation outdoors and in wet areas
The 4X-Series UV light system is compact and ready for outdoor exposure. It is lightweight and easy to install with no installation hardware to buy. The cabinet is fiberglass and weather-tight and its UltraMAX UV lamps have a 360° dispersion for maximized airstream disinfection. The 4X-Series UltraMAX T3™ UVC lamps have an industry-leading two-year life expectancy for surface irradiation.
- Available with 12-, 22- or 33-inch UltraMAX T3™ 254nm UV lamps
- Clean coils reduce HVAC power consumption
- Produces no ozone
Applications: UV-C coil cleaning for rooftop HVAC systems and other outdoor/wet locations, for HVAC bio-growth prevention, allergy relief, HVAC cooling efficiency optimization, airstream disinfection, elimination of coil cleaning as a result of bio-contamination.
4X-Series features and options
Multiple configurations available
Single- or dual-lamp configurations and three lamp length options (12", 22" and 33")
Ultravation’s innovative T3™ UV-C Lamp System
To maximum performance at the lowest cost, Ultravation developed the T3™ UV lamp system to provide up to 40% higher intensity UV-C output without increased energy consumption.
T3’s 360° dispersion best for airstream disinfection
Low turbulence T3™ UV lamp design requires no reflective panels on the lamps, extending dispersion to 360°, creating an effective germicidal field for airstream disinfection
UV disinfection for safer ice machine operation
Ice machine UV reduces cleaning frequency and maintenance.
Ozone Free ClearCubes™ conforms to UL 2998 (3rd Edition, July 10, 2020) clause 6.2, emittance of ozone not exceeding a concentration of 0.005 ppm.

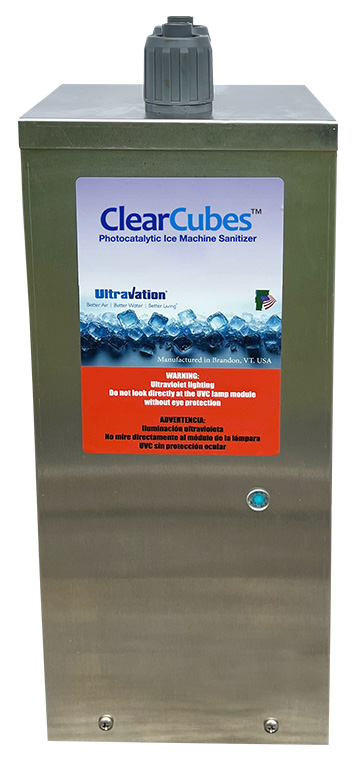

24/7 germicidal ice machine sanitizer

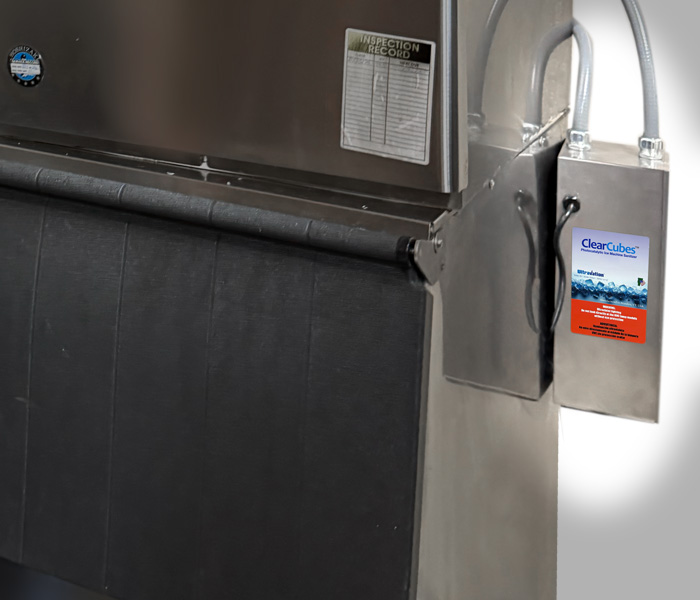

The UVMatrix™ ClearCubes™ UV system for ice machines continually applies germicidal ultraviolet light to destroy bacteria, viruses and mold for safer ice machine operation. Ice machine UV reduces cleaning frequency and maintenance.

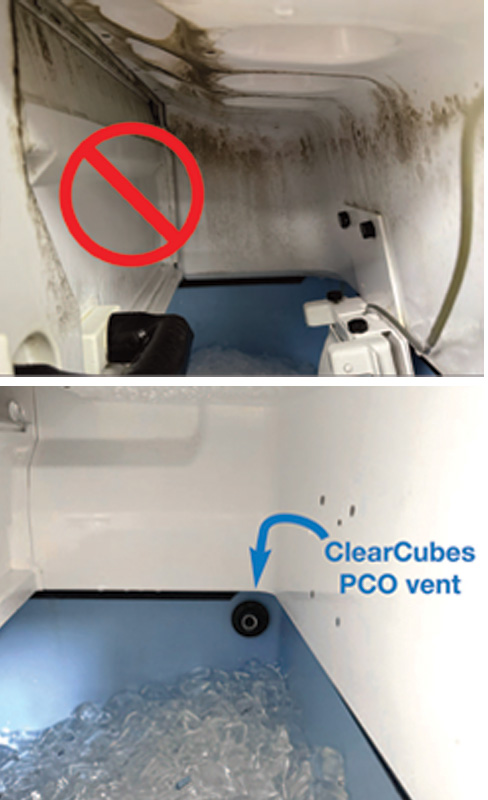

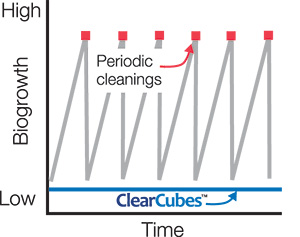

UVMatrix™ ClearCubes™ is specially designed for ice machines to eliminate the gradual build-up of bio-growth between conventional cleanings—reducing maintenance costs. The 254 nanometer, germicidal UV-C lamp reduces odors and kills germs on machine surfaces and the ice as well without damaging plastic materials inside the machine. UV-C light has been proven effective against all types of organisms.
- Two Shatter-resistant, Teflon-coated UVC lamps
- 9,000 hr lamp life (approximately 12 months)
- 3-year system warranty (excludes lamps)
- Auto-voltage automatically adjusts for 120 or 240 VAC operations.

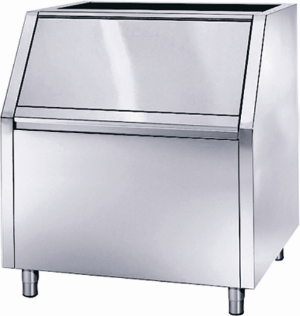

- Engineered to fit all ice machines
- Combine products for larger systems
The ClearCubes kit consists of two 7″ Ultravation® anti-shatter, Teflon® coated UV lamps, an electronic power supply (120 or 240VAC), a 4 ft. quick-connect lamp lead, two stainless steel mounting brackets and twin adjustable stainless steel light shields that keep UV away from sensitive areas. Installs easily with a high-tack adhesive mounting strip and/or provided screws.
ClearCubes features
Germicidal UV-C lamps
The ClearCube system uses two 254-nanometer UV-C lamps to create a specific range of UV light that is lethal to bacteria, viruses and other bio-growth. Environmentally friendly—using no chemicals and producing no by-products.
Penetrate cell walls and destroys microorganism DNA
The UV band of light contains frequencies that penetrate cell walls and destroys the DNA of microorganisms… when this happens they become unable to reproduce and die off.
Fits all ice machines
